商品の詳細:
お支払配送条件:
|
| 力: | 電子,水力,AC220V 50Hz | 使用法: | ユニバーサルテストマシン |
|---|---|---|---|
| 重さ: | 216KG | 製品名: | 10T コンピュータ・サーボ・ユニバーサル・トレンス・テスト・マシン 価格 |
| 電源: | 220V 50Hzをカスタマイズできます | 適用する: | ユニバーサルテスター |
| スタンダード: | bs.en.astm | モーター: | パナソニックサーボモーター |
| 保証: | 1年 | 正確さ: | +/- 0.5％ |
| 名前: | ユニバーサルテストマシン | 容量: | 200 |
| 脳卒中: | 650mm（クランプを除く） | 解決: | 1/250 |
| テストスペース: | 120mmMAX | 精度の測定: | 価値±1%/Value±0.5% |
| 効果的測定範囲: | 00.2%~100% (1級) /0.4%~100% (0.5級) | 手術: | コンピューターウィンドウの操作 |
Uses

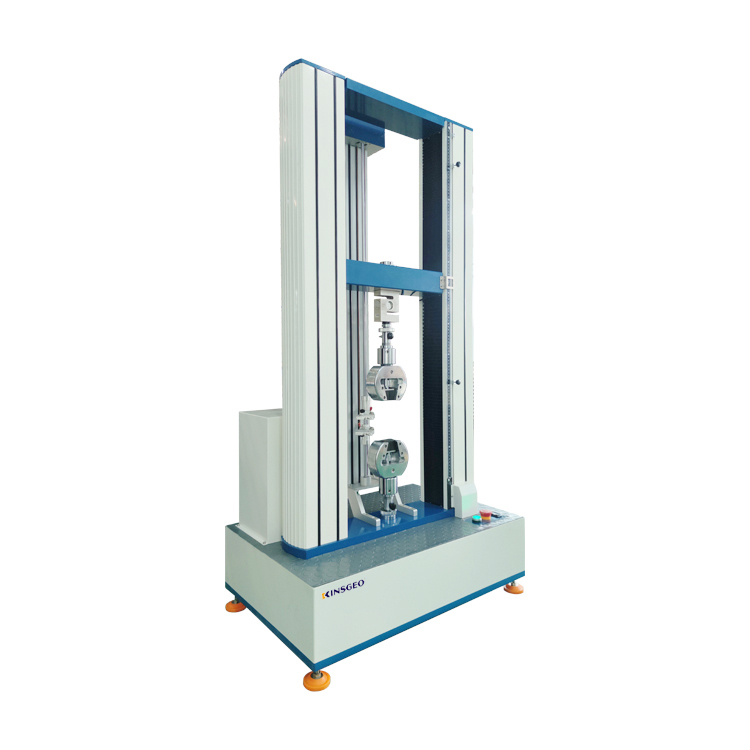

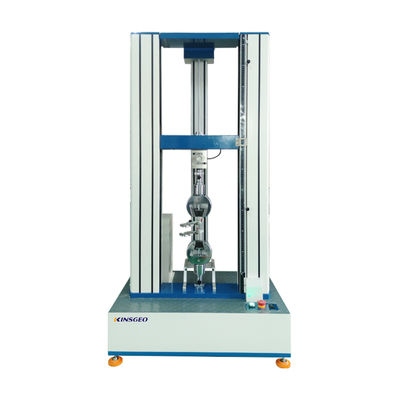

This machine also known as a materials testing machine , is applicable to testing tensile, compression,bending,peel, shearing force, peeling force, modulus of elasticity,and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable,leather,package,tape,
film,solar cell,etc.
Character
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be control in 0.5%.
3. That using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
| Design Standards |
GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ISO 527,ASTM D628,ASTM D638,ASTM D412.
|
| Model | KJ-1066B |
| Range of speed | 50-500mm/min |
| Motor | AV Servo Motor |
| Capacity choice | 2000KG |
| Resolution | 1/150,000 |
| Effective testing space | 400mm MAX |
| Accuracy | ±0.5% |
| Operation method | Windows XP,Win7 operation,computer control |
| Accessories | computer, printer, system operation manual |
| Optional accessories | customized clamps by appointed, force sensors, , printer, and operation manual |
| Weight | 400KG |
| Dimention | (W×D×H)80×50×150㎝ |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke protection | Upper and lower protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
