50N 90-Degree Tape Peel Strength Testing Machine

認証
中国 GUANGDONG KEJIAN INSTRUMENT CO.,LTD 認証
中国 GUANGDONG KEJIAN INSTRUMENT CO.,LTD 認証
普遍的な試験機の質が最もよい、売り上げ後のサービスのKejianはまた大きいです。

—— オスカーVargas

ペーパー試験機は最もよいプロダクトの1つです。

—— Kritsana Praikongkadhrama

オンラインです

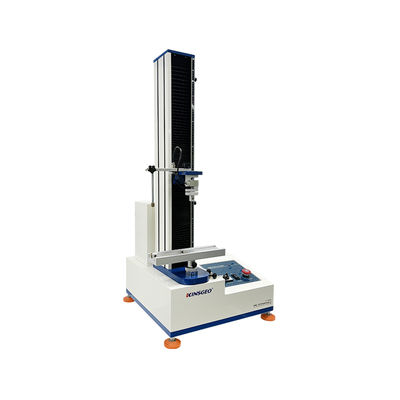

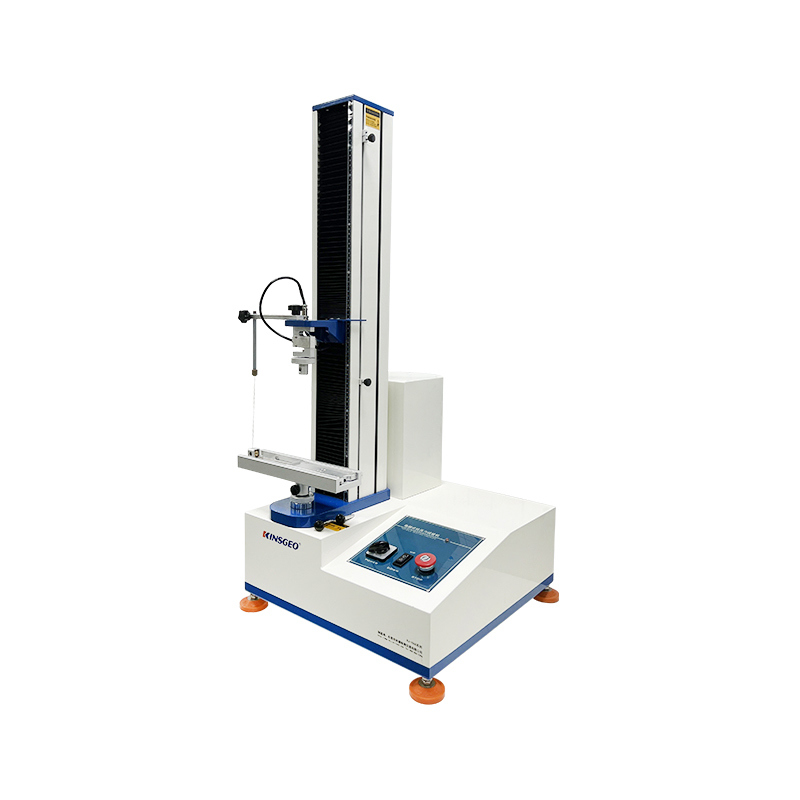

50N 90-Degree Tape Peel Strength Testing Machine

50N 90-Degree Tape Peel Strength Testing Machine

大画像 :  50N 90-Degree Tape Peel Strength Testing Machine

商品の詳細:
起源の場所: 中国
ブランド名: KINSGEO
証明: CE/ISO
モデル番号: KJ-1065
お支払配送条件:
最小注文数量: 1セット
価格: USD/3800/SET
受渡し時間: 15営業日
支払条件: T/T
供給の能力: 30セット/月
詳細製品概要
重さ: 500 kg 曲げ角: 0~180度
インタフェース: USBインターフェイス クロスヘッド速度範囲: 0.001-500 mm/min
ソフトウェア機能: 単位は g, kg, N, KN, LB を選択します 負荷精度: 2.4KN/s +/- 200N/s
使用法: 圧縮強度テスト テスト速度: 0.1〜500mm/min 選択可能
スピード範囲: 0.5-500mm/min Aplication: ゴム,プラスチック,ナイロン,革など
丸い角: R1-1,5mm 脳卒中: 650mm
機械の精度: +/-0.5%以上 力: 電子
製品名: コンピューターコントロール単一列ユニバーサルテストマシン 電源: 220V 50Hz
応用: ユニバーサルテスター 標準: ASTM E8/A370/ISO 75001
保証: 1年 正確さ: +/- 0.5%
手術: コンピューターウィンドウの操作

Laboratory Electronic Universal Testing Machine 200kg Bending Strength Test Machine



Use

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.



Character

1.Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2.Have steady performance, high accuracy, powerful software function and easy operation.

3.Use the USA high-precision load cell.Machine accuracy is ±0.5%.



Accessories

1.Suitable Grips that meet customer sample need.

2.Special peeling tools for peel test in tape&film industry.

3.Software for test control,data acquisition and report.

4.English operation teach video.

5.Tabel,computer is selectable.



Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

Design Standards

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,GB/T 453,ASTM E4,ASTM D1876,ASTM F2256,EN1719,EN 1939,ISO 11339,ISO 36,EN 1465,ISO 13007,ISO 4587,ASTM C663,ASTM D1335,ASTM D5733, ASTM D2261,ASTM F2458,EN 1465,ISO 2411,ISO 4587,ISO/TS 11405,ASTM D5034, ASTM D4632

Model KJ-1065 B
Range of speed 50-500mm/min
Motor AC Motor
Capacity choice 1,2,5,10,20,50,100,200,500kg optional
Resolution 1/150,000
Effective testing spac

120mmMAX

Accuracy ±0.5%
Operation method Windows operation
Accessories

Machine,peel tools,system operation manual

Weight 80KG
Dimention (W×D×H)58×58×125cm
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
