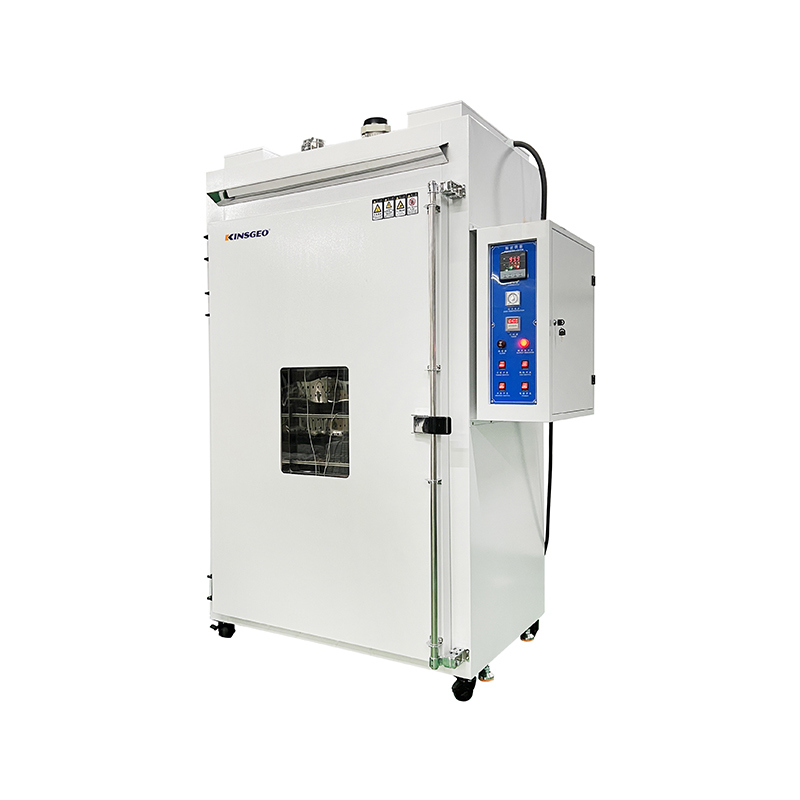

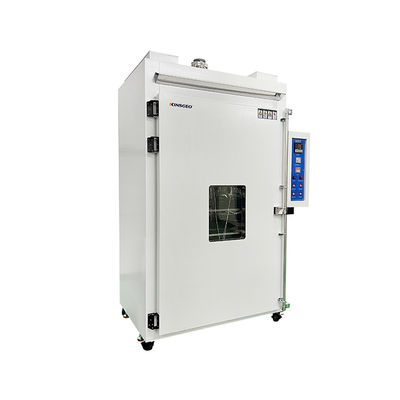

Customized Laboratory Precision Curing Oven

Customized Laboratory Precision Curing Oven
Customized Laboratory Precision Curing Oven Customized Laboratory Precision Curing Oven

大画像 :  Customized Laboratory Precision Curing Oven

商品の詳細:
起源の場所: 東中国
ブランド名: KINSGEO
証明: CE,ISO
モデル番号: KJ-2010
お支払配送条件:
最小注文数量: 1セット
価格: Negotiate
パッケージの詳細: 各セットは樹脂繊維およびPPのフィルムと保護したり、そして専門の合板の強い木の箱に入った
受渡し時間: 在庫では、確認される順序の後の5-10仕事日
支払条件: L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力: 1か月あたり100セット
詳細製品概要
製品名: 工業用オーブン 温度範囲: 200℃、300℃、400℃、500℃
加熱: 熱気 力: 220Vまたは380V
保証: 1年

72L Desktop Environmental Industrial Aging Drying Oven Test Chambers



Product Introduction:


Inner size: 90×60×120cm(W×D×H)(Customized),
Outside size: 110*75*186cm (W×D×H)
Power:220/380V heating power:about KW

1. The controller is located in the right side of the machine,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.
2. The material of
Inner is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding
3. The material of
Outside is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.
Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.

Temperature control system

1. Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2. Current controller is SSR,contactless Relay,keep the voltaic high stability.
3 .Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life.
4. Temperature range:RT~400℃(Customise),normal temperature RT~350℃(Customise),.
5.  Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)
Air supply system

Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate Make the wind path smoothly.
Heating speed:RT~100℃ about 10minutes.

Accessories

superhigh temperature protection, non fuse-switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.

Specification:

Interior size
(W×H×D)
Exterior size
(W×H×D)
Temperature
range
Heating time Accuracy

Uniformity

Power

Partition

(net bar shape)

35×35×35cm 53×65×55cm 200℃ RT-100℃
About 10min
±1℃ ±5

220V

or

380V

1.5kW 2
45×40×40cm 66×98×53cm A:200℃
B:300℃
C:400℃
D:500℃
±0.5℃ ±1 3.5kW 2
50×60×50cm 75×121×68cm ±0.5℃ ±1 4.5kW 2
60×90×50cm 85×160×68cm ±0.5℃ ±1 5.5kW 2
80×100×60cm 110×168×78cm ±0.5℃ ±1 6.5kW Customized
90×120×60cm 120×180*78cm ±0.5℃ ±2 7kW
140×120×60cm 175×192×78cm ±1℃ ±2 11kW
160×140×80cm 200×215×98cm ±1℃ ±2 13kW
180×140×100cm 220×215×118cm ±1℃ ±2 19kW

KeJian Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
