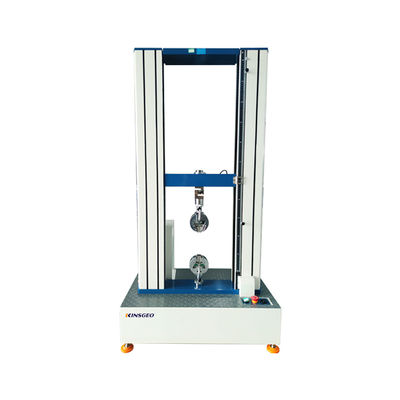

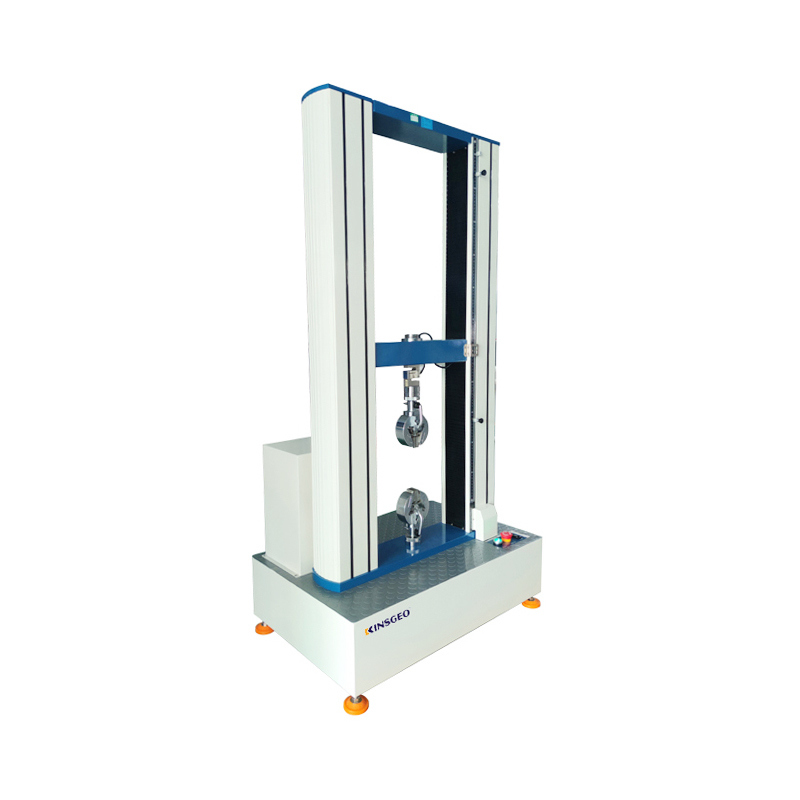

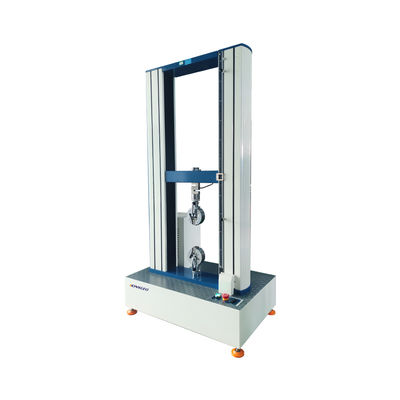

Double-column Universal Bending Testing Machine
Product Introduction
Our dual column universal tensile testing machine is designed for evaluating the strength of various materials including plastic films, composite materials, soft packaging, rubber, paper fiber, and more. It performs comprehensive tests for tension, compression, bending, shearing, tearing, peeling, puncture, and three-point bending conditions.
Widely used in textile manufacturing, furniture production, wire mesh, adhesive tapes, film materials, medical equipment protective films, and related industries.
Download Product Specification PDF
Key Features
- High-strength steel die machine body with aluminum force columns
- Premium automotive-grade paint finish for durability and aesthetics
- Environmentally friendly, non-toxic paint that is aging-resistant
- Precision servo motor for accurate operation
- High-precision sensor for reliable force measurement
- Interchangeable clamps for diverse testing applications
Technical Specifications
| Items |
Specifications |
| Capacity |
100, 200, 500, 1000, 2000, 3000, 5000, 10000kg |
| Unit Switchover |
G, KG, N, LB |
| Display Device |
LCD or PC |
| Resolution |
1/250,000 |
| Accuracy |
±0.5% |
| Max. Stroke |
1000mm (including fixture) |
| Test Speed |
0.1-500mm/min (adjustable) |
| Motor |
Panasonic Servo Motor |
| Screw |
High Precise Ball Screw |
| Elongation Accuracy |
0.001mm |
| Power |
AC220V, 50HZ or customized |
| Weight |
Approx. 500kg |
| Accessories |
Tensile clamp, computer system, English software CD, operation CD, user manual |
Application Industries
Our universal tensile strength testing machine serves diverse industries including rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, wire and cables, packaging, medical equipment, research laboratories, and technical supervision departments.
Service & Support
Onsite Services:
- Device installation and operation testing
- Technical training and equipment calibration
- Daily maintenance guidance
Additional Support:
- Free technical training for visiting factories
- 24-hour online support
- Free software upgrades
- Comprehensive documentation including product instructions, operation videos, and test reports
Customer Commitment
We guarantee a response within 48 hours and solution provision within 3 working days for any testing process issues. We provide operation videos, English manuals, and video conference support.
Specialized manufacturer for mechanical properties measuring equipment. Custom clamps available to precisely fit your testing requirements!
