商品の詳細:
お支払配送条件:
|

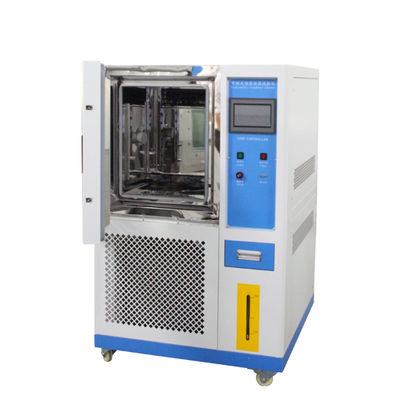

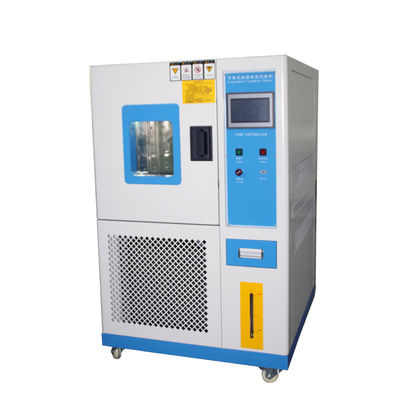

| 製品名: | プログラム可能な温度および湿度テストチャンバー | 温度の制御範囲: | -70 ℃～150 |
|---|---|---|---|
| 湿度の制御範囲: | rh20％～98％ | コントローラ: | プログラム可能なLCDタッチスクリーン |
| 温度の変動: | ±0.5℃ | 内部素材: | ステンレス鋼SUS 304＃ |
| サイズ: | カスタマイズされた | 保証: | 12ヶ月 |
| ハイライト: | Customizable Temperature Range Test Chamber,High Precision Humidity Test Chamber,Wide Humidity Range Environmental Chamber |
||
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| Size of inner box (W*H*D) | 40*50*40 cm | 50*60*50 cm | 40*75*60 cm | 60*85*80 cm | 100*100*80 cm | 100*100*100 cm |
| Size of outer box (W*H*D) | 92*138*108 cm | 102*146*116 cm | 102*162*126 cm | 113*172*148 cm | 150*186*139 cm | 158*188*168 cm |
| Volume of inner box | 80L | 150L | 225L | 408L | 800L | 1,000L |
| Control range of temperature and humidity | A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98% | |||||
| Performance | Fluctuation: ±0.5℃; ±2.5%RH Deviation: ±0.5℃～±2℃; ±3%RH(＜75%RH); ±5%RH(≥75%RH) Accuracy: ±0.3℃; ±2.5%RH |
|||||
| Controller brand | Customized | |||||
| Material | Interior: #SUS 304 Steel plate Exterior: White&Blue |
|||||
| Thermal insulation material | High temperature and high density vinyl chloride foam insulation material | |||||
| System wind path circulation | Centrifugal fan - wide band forced air circulation (upper in, lower out) | |||||
| Refrigerating method | Single stage mechanical compression refrigeration | |||||
| Refrigerating machine | Fully enclosed piston type compressor from TAIKANG French | |||||
| Refrigerant | R4O4A/Dupont environmental refrigerant(R23+R4O4) | |||||
| Condensation method | Air or water cooled | |||||
| Heater | Nickel-chromium electric heating wire heater | |||||
| Humidifier | Semi-enclosed steam humidification | |||||
| Water supply method | Fully automatic circulating water supply (manual watering) | |||||
| Standard equipment | View window (double-layer hollow tempered glass)*1, 50mm test hole position and left*1, PL box light*1, partition*2, dry and wet ball gauze*1 fuse*3 rubber soft plug *1, power cord*1 | |||||
| Safety device | No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system | |||||
| Power | 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz | |||||
